Removal & Installation
- Raise and support vehicle. Remove wheels.

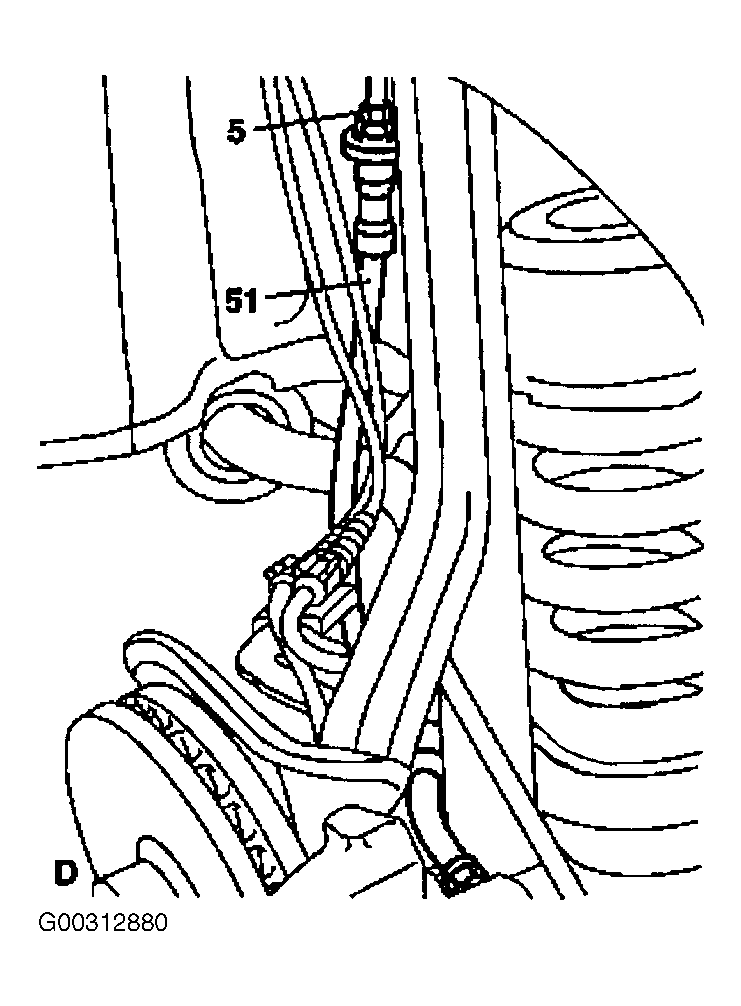

- Remove brake line (5) from brake hose (51) and seal off openings. See Fig 1
. The brake fluid reservoir must not be allowed to drain.
- Unscrew brake hose from brake caliper and pull brake hose through rubber grommet on bracket.
- Installation is the reverse of removal procedure. Bleed brake system. See BLEEDING BRAKE SYSTEM
. Tighten nuts and bolts to specification. See TORQUE SPECIFICATIONS
.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
