Remove/install radial sealing ring of rear axle shaft at rear axle housing - AR35.31-P-0541GG

Rear axle center assembly dia. 168 in MODEL 170.435

Rear axle shafts plugged in

Rear axle center assembly dia. 185 in MODEL 170.444 /445 /447 /449

Rear axle shafts plugged in

Rear axle center assembly dia. 198 in MODEL 170.465 /466

Rear axle shaft plugged in

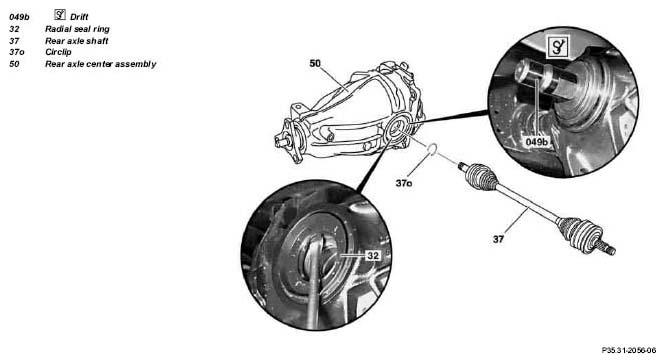

Fig 1: Identifying Radial Sealing Ring Of Rear Axle Shaft At Rear Axle Housing Remove/Install Components

Modification notes

20.3.04	Oil filler screw and oil drain screw changed on rear axle center assembly	as of 19.01.04 The oil filler screw and oil drain screw must always be replaced with new screws after removal. Clean new oil filler and drain screws as well as the threaded holes with a special cleaning agent and apply special sealing compound	BT35.31-P-0015-01A
	Always replace oil filler screw after unscrewing rear axle center section The new oil filler screw as well as the tapped hole must be cleaned with a special cleaning spray and the oil filler screw provided with a special sealing compound	Only carry out the oil level check at interior temperature.	AR35.31-P-0520-03A

	Remove
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle.
2	Remove left or right rear axle shaft (37)		AR35.30-P-0620GG
3	Using a wide screwdriver, lever radial sealing ring (32) out of rear axle center assembly (50).
	Install
4	Using drift (049b) press new radial sealing ring into rear axle center assembly (50)	Coat lip of new radial sealing ring (32) with Universal hypoid gear oil.
		Drift	Figure
5	Replace circlip (37o) and replace rear axle shaft (37)		AR35.30-P-0620GG
	Check
6	Check oil level in rear axle center assembly and correct if necessary	Mixing of old universal hypoid gear oil and the new FE hypoid gear oil should be avoided due to the better fuel economy.	AR35.31-P-0520-03I
		Filling capacity of rear axle center assembly	*BF35.31-P-1001-01F
		Cleaning spray, Loctite 7063 (150ml)	*BR00.45-Z-1046-04A
		Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
		Oil filler screw for rear axle center assembly	*BA35.31-P-1002-02A
	Oil filler screw and oil drain screw changed on rear axle center assembly	as of 19.01.04	BT35.31-P-0015-01A
7	Lower vehicle

Rear axle center assembly housing

Number	Designation		Model 170
BA35.31-P-1002-02A	Oil filler plug, rear axle center assembly	Nm	50

Rear final-drive unit

Number	Designation			Model 170.435	Models 170.444/ 444/445/ 449	Models 170.465/466
BF35.31-P-1001-01F	Filling capacity	Rear axle center assembly	Liters	0.7	1,1	1,1
BF35.31-P-1001-01F	Filling capacity	Specifications for Operating Fluids	Sheet	BB00.40-P-0235-07A	BB00.40-P-0235-07A	BB00.40-P-0235-07A

Fig 2: Identifying Drift (126 589 00 15 00)

Repair materials

Number	Designation	Order number
BR00.45-Z-1061-01A	Sealant, Omnifit 100H (50 g)	-
BR00.45-Z-1046-04A	Cleaning spray, Loctite 7063 (150ml)	A 001 986 71 71 10
