Remove/install torque strut - AR35.20-P-0113B: Notes

MODELS 129, 170, 202, 208, 210

Model 210 illustrated

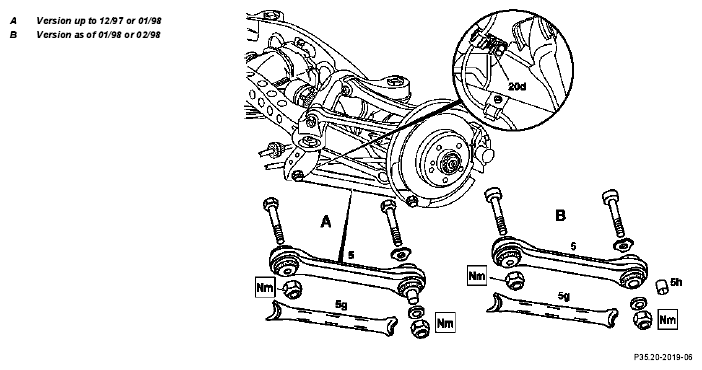

Fig 1: Identifying Torque Strut Remove/Install Components

28.2.98	Diameter of wheel carrier bores modified	Model 129, 170, 202, 208 as of 02/98 Model 210 applicable as of 01/98	BT35.20-P-0005-01A
28.2.98	Bolted connection, torque strut to wheel carrier modified	Tightening torque of bolted connection M10 increased from 45 Nm to 70 Nm  for new bolted connection M12  .	BT35.20-P-0006-01A
28.2.98	If a new torque strut is fitted to a conventional wheel carrier version (Ø of fixing bore in wheel carrier approx. 13.5 mm), the sleeve (5h) must be installed in the wheel carrier to reduce the diameter to approx. 12.2 mm	Model 129, 170, 202, 208 as of 02/98 Model 210 as of 01/98, see:↓
		Install sleeve for torque strut in wheel carrier	AR35.20-P-0113-01A

Fig. item, etc.	Work instructions
Installation	Replace self-locking nuts
	Risk of fatal accident  from vehicle slipping or toppling off the lift platform	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
5	Thrust arm
	Diameter of wheel carrier bores modified	Model 129, 170, 202, 208 as of 02/98 Model 210 applicable as of 01/98	BT35.20-P-0005-01A
	Bolted connection, torque strut to wheel carrier modified	Model 129, 170, 202, 208 as of 02/98 Model 210 applicable as of 01/98	BT35.20-P-0006-01A
		The rear axle shaft must be horizontal when tightening the nuts
		Thrust arm to rear axle carrier	*BA35.20-P-1001-05A
		Thrust arm to wheel carrier	*BA35.20-P-1002-05A
5h	Sleeve in wheel carrier to reduce diameter	Model 129, 170, 202, 208 as of 02/98 Model 210 as of 01/98, see:↓
		Install sleeve for torque strut in wheel carrier	AR35.20-P-0113-01A
5 g	Torque strut cover	Note correct installation position.
20D	Detach, attach bracket	If present

Thrust arm

Thrust arm
