Check and adjust toe on rear axle - AR40.20-P-0332A

MODEL 129, 140, 170, 202, 208, 210

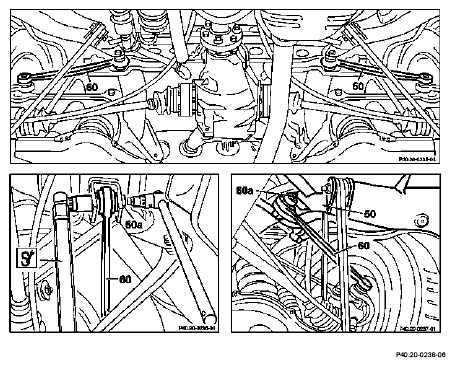

Fig 1: Checking & Adjusting Toe On Rear Axle

	Check
1.1	Check vehicle level at front and rear axle and adjust, if necessary	With Mercedes-Benz measuring device.
		Model 129, model 170 up to 28.02.00, Model 170 with AMG lowering kit, models 202, 208	AR40.20-P-0300A
		Model 140	AR40.20-P-0300B
		Model 129 with ADS	AR40.20-P-0300D
		Model 129 with ADS II	AR40.20-P-0300E
		Model 210.00/01/02/03/04/05/06/07/20/21/22/23/24/26/27	AR40.20-P-0300C
1.2	Check vehicle level at front and rear axle with electronic inclination measuring instrument and adjust, if necessary	With electronic inclination measuring instrument.
		Model 170, 202, 208	AR40.20-P-0301A
		Model 210.00/01/02/03/04/05/06/07/20/21/ 22/23/24/26/27	AR40.20-P-0301C
		Model 210.08/28/6	AR40.20-P-0301D
2	Adjust toe with cam bolt (60a) on mounting of left and right tie rod (60) on rear-axle carrier (50)	On model 210 with xenon headlamps, check headlamp alignment after changing the toe.	*BE40.20-P-1001-10A
	Check and correct headlamp adjustment		AP82.10-P-8260A
			*BA40.20-P-1008-01A

TEST VALUES FOR REAR AXLE TOE

Number	Designation		Model 129	Model 140	Model 170	Model 202
BE40.20-P-1001-10A	Overall toe-in at rear axle	∠ °	0° 25' (-05'/+10')	0° 35' (-05'/+10')	0 ° 33' ± 7'	0 ° 33'± 7

TEST VALUES FOR REAR AXLE TOE

Number	Designation		Model 208	Model 210
BE40.20-P-1001-10A	Overall toe-in at rear axle	∠ °	0°33' (± 14')	0° 33'(± 7')

CHASSIS ALIGNMENT

Number	Designation		Model 129	Model 140	Model 202	Model 210	Model 170
BA40.20-P-1008-01A	Cam bolt, rear axle tie rod	Nm	70	70	70	70	70

CHASSIS ALIGNMENT

Number	Designation		Model 208
BA40.20-P-1008-01A	Cam bolt, rear axle tie rod	Nm	70
