Remove, install poly V-belt - AR13.22-P-1202SV

ENGINE 112.947 in MODEL 170.465

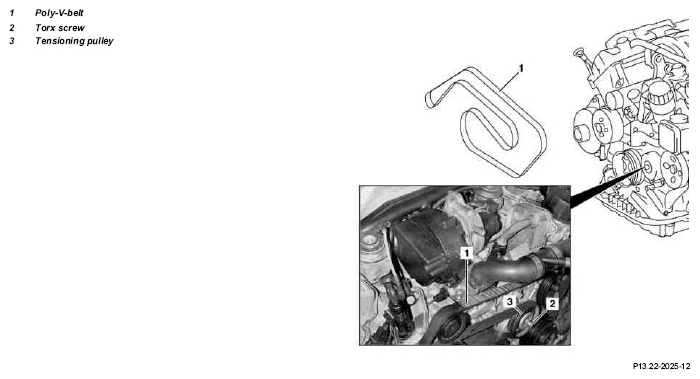

Fig 1: Identifying Poly-V-Belt, Torx Screw And Tensioning Pulley - Engine 112.947 In Model 170.465

	Remove
1	Loosen poly-V-belt (1) and remove	Swivel torx bolt (2) at tensioning pulley (3) in anti-clockwise direction for this step. Lock the tension pulley with a pin or mandrel (diameter 5mm).
	Check
2	Inspect belt pulley sections and tensioning device for damage and dirt
3	Check poly-V-belt (1)
	Check poly-V-belt in visible area for wear		AP13.22-P-1352Z
	Install
4	Fit on poly V-belt (1), tension	Begin in numerical order of the relevant running diagram with the tensioning pulley: ↓
		Layout diagram of poly-V-belt Do not use belt wax or any similar products.	AR13.22-P-3902-02B
