Installing installation support in Vario roof - AR77.50-P-3300-01G
- Move Vario roof to installation position with roof switch.
Leave ignition switched on. The Vario roof remains in this position for 7 minutes after releasing the roof switch (stop function). This position can be set for another 7 minutes by pressing the roof switch again.

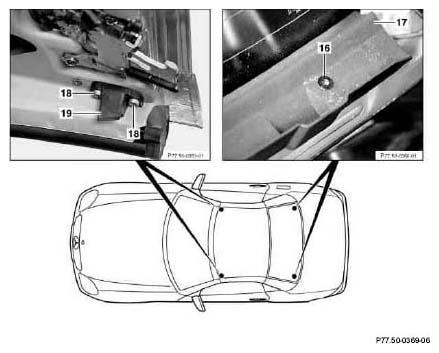

- Remove support (19).
- Unscrew bolt (16) on cover (17).

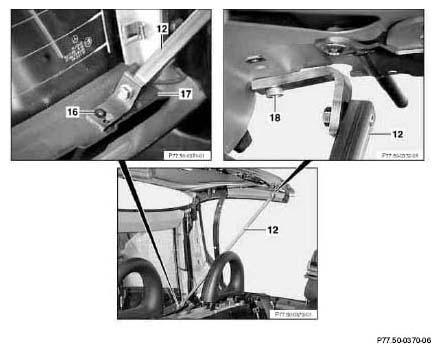

- Position installation support (12) and fasten with bolts (16, 18) in Vario roof.
