Correct oil level of hydraulic unit - AR77.37-P-3501-01G
Soft top hydraulic system
| Number |
Designation |
Model 170 |
| BA77.37-P-1005-01A |
Filler screw on hydraulic unit |
Nm |
8.0 |
Soft top hydraulic system
| Number |
Designation |
Model 170 |
| BF77.37-P-1001-01A |
Filling quantities |
Soft top hydraulic system oil reservoir |
Liters |
0.420 |
| Specifications for Service Products |
Sheet |
BB00.40-P-0343-00A |
Commercially available tools
| Number |
Designation |
| WH58.30-Z-1001-16A |
Syringe |

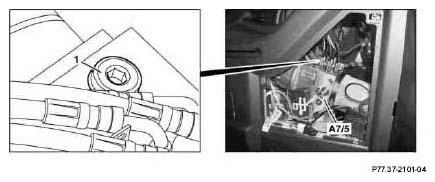

- Unscrew oil filler screw (1) from soft top actuation hydraulic unit (A7/5).
- Refill hydraulic oil with
spray bottle (2)
The oil level must be located between the two triangular markings on the oil reservoir for the soft top actuation hydraulic unit (A7/5)
- Screw oil filler screw (1) into soft top actuation hydraulic unit (A7/5).
