SLK230 Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Sun Roof/T-Top/Convertible Top
>>
Sliding Roof, Soft Top -- 170 Chassis
>>
Self-Diagnostic System
>>
Vario roof (VR), checking hydraulic system - AD77.50-P-7000A
>>
System pressure, checking hydraulic system, vario roof (VR) - AD77.50-P-7000-02A
System pressure, checking hydraulic system, vario roof (VR) - AD77.50-P-7000-02A

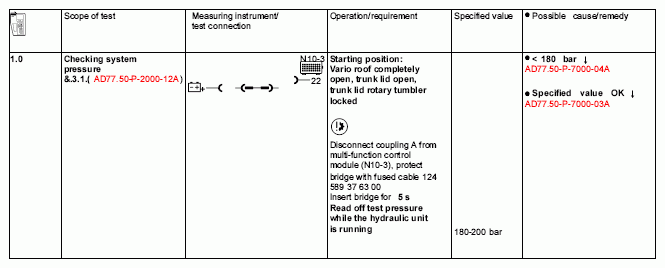

Fig 1: System Pressure, Checking Hydraulic System, Vario Roof
