Hydraulic cylinder (rod end) for vario roof, checking hydraulic system, vario roof (VR) - AD77.50-P-7000-04A

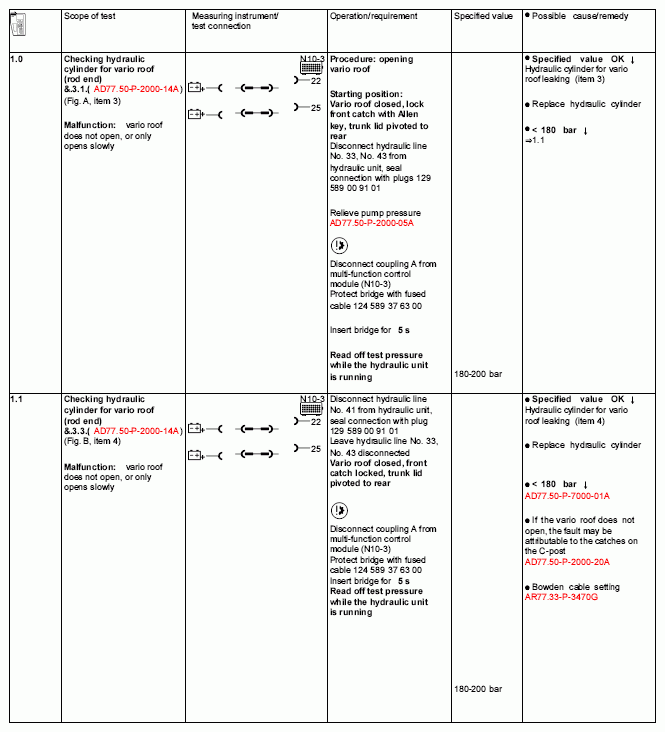

Fig 1: Hydraulic Cylinder (Rod End) For Vario Roof, Checking Hydraulic System, Vario Roof (1 Of 2)
G04744210

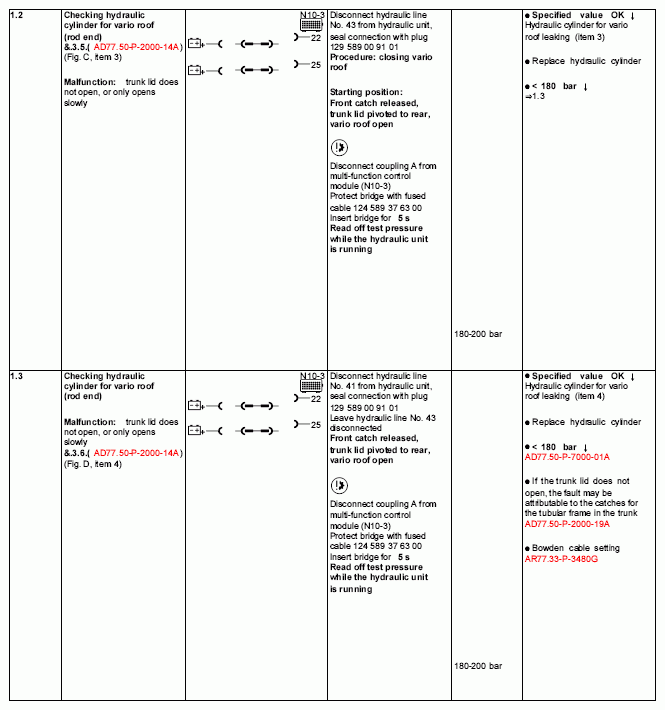

Fig 2: Hydraulic Cylinder (Rod End) For Vario Roof, Checking Hydraulic System, Vario Roof (2 Of 2)
G04744211
