Vario roof (VR) diagnosis, previous knowledge - AD77.50-P-2000A
>>
Summary chart, energizing side windows for opening procedure of vario roof - AD77.50-P-2000-09A
Summary chart, energizing side windows for opening procedure of vario roof - AD77.50-P-2000-09A
Opening procedure of vario roof

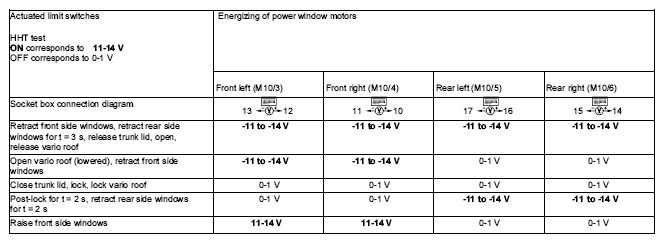

Fig 1: Summary Chart, Energizing Side Windows For Opening Procedure Of Vario Roof
