Vario roof (VR) diagnosis, previous knowledge - AD77.50-P-2000A
>>
Summary chart, energizing side windows for closing procedure of vario roof - AD77.50-P-2000-10A
Summary chart, energizing side windows for closing procedure of vario roof - AD77.50-P-2000-10A
Closing procedure of vario roof

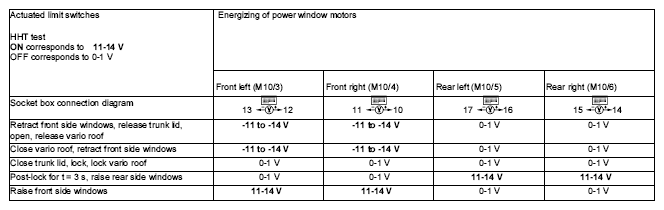

Fig 1: Summary Chart, Energizing Side Windows For Closing Procedure Of Vario Roof
