Connection diagram between pressure gauge and hydraulic unit for vario roof (VR) - AD77.50-P-2000-06A

Conversion kit 126 589 14 21 00

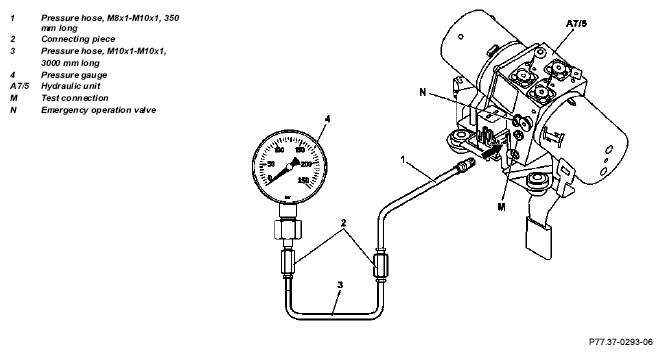

Fig 1: Connection Diagram Between Pressure Gauge And Hydraulic Unit For Vario Roof
G04744134
