Circuit diagram for system pressure, diagnosis with previous knowledge of vario roof (VR) - AD77.50-P-2000-12A

A7/5 Hydraulic unit

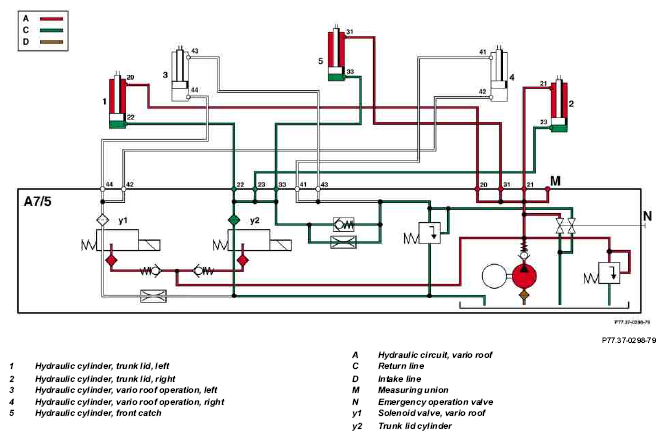

Fig 1: Circuit Diagram For System Pressure Diagnosis With Previous Knowledge Of Vario Roof - A7/5 Hydraulic Unit
G04744138
