Circuit diagram for hydraulic unit delivery rate, diagnosis with previous knowledge of vario roof (VR) - AD77.50-P-2000-13A

A7/5 Hydraulic unit

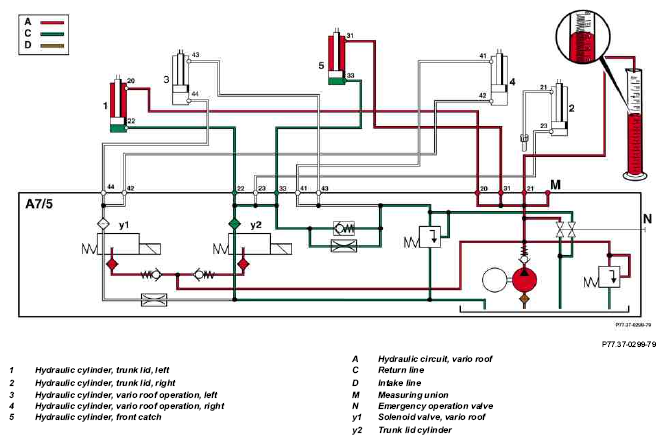

Fig 1: Circuit Diagram For Hydraulic Unit Delivery Rate, Diagnosis With Previous Knowledge Of Vario Roof - A7/5 Hydraulic Unit
G04744139
