Circuit diagram for hydraulic cylinders, vario roof end of plunger, diagnosis with previous knowledge of vario roof (VR) - AD77.50-P-2000-17A

A7/5 Hydraulic unit

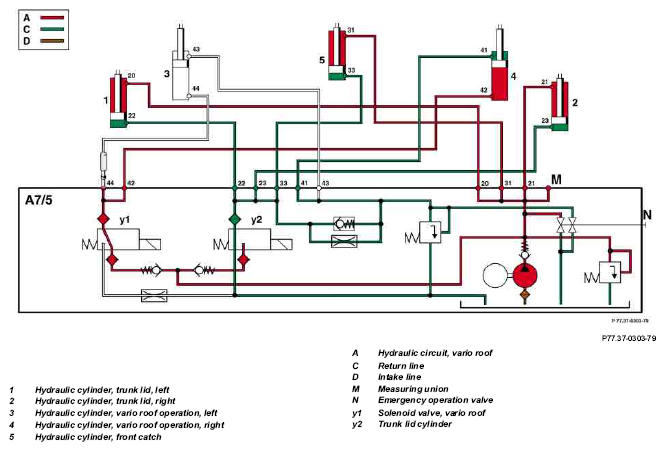

Fig 1: Circuit Diagram For Hydraulic Cylinders, Vario Roof End Of Plunger, Diagnosis With Previous Knowledge Of Vario Roof - A7/5 Hydraulic Unit (1 Of 4)

A7/5 Hydraulic unit

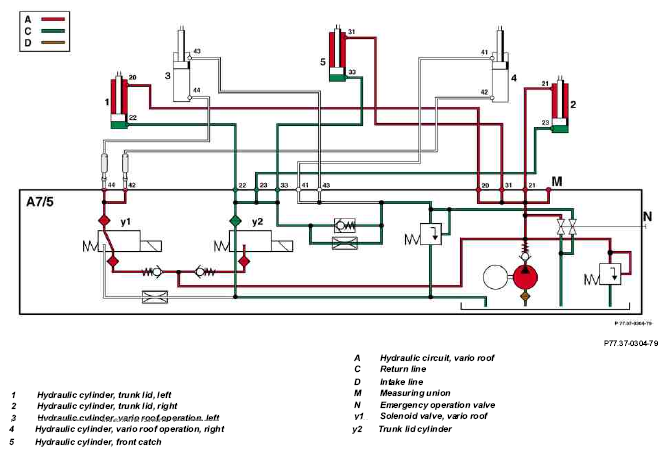

Fig 2: Circuit Diagram For Hydraulic Cylinders, Vario Roof End Of Plunger, Diagnosis With Previous Knowledge Of Vario Roof - A7/5 Hydraulic Unit (2 Of 4)

A7/5 Hydraulic unit

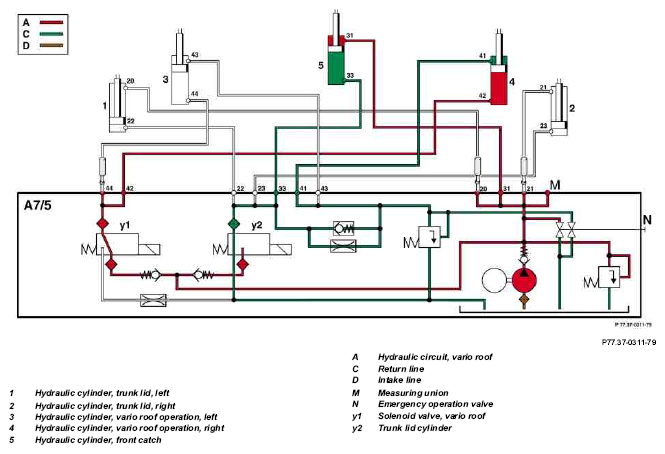

Fig 3: Circuit Diagram For Hydraulic Cylinders, Vario Roof End Of Plunger, Diagnosis With Previous Knowledge Of Vario Roof - A7/5 Hydraulic Unit (3 Of 4)

A7/5 Hydraulic unit

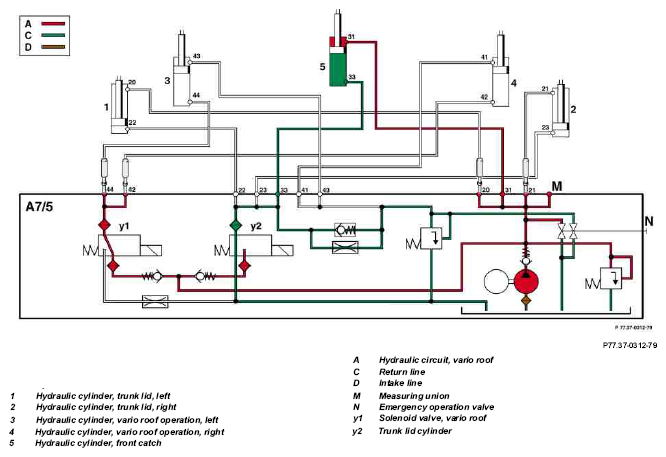

Fig 4: Circuit Diagram For Hydraulic Cylinders, Vario Roof End Of Plunger, Diagnosis With Previous Knowledge Of Vario Roof - A7/5 Hydraulic Unit (4 Of 4)
