Circuit diagram for hydraulic cylinders, rod end for front catch, diagnosis with previous knowledge of vario roof (VR) - AD77.50-P-2000-16A

A7/5 Hydraulic unit

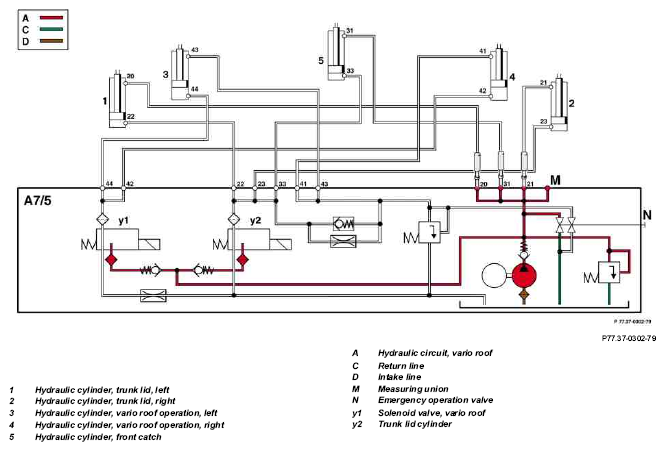

Fig 1: Circuit Diagram For Hydraulic Cylinders, Rod End For Front Catch, Diagnosis With Previous Knowledge Of Vario Roof - A7/5 Hydraulic Unit (1 Of 2)

A7/5 Hydraulic unit

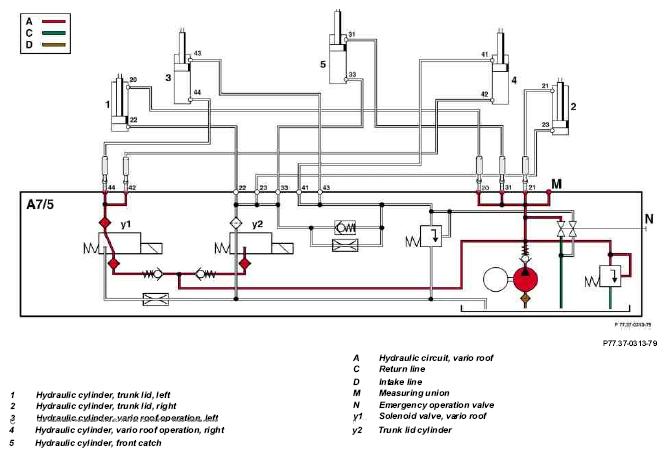

Fig 2: Circuit Diagram For Hydraulic Cylinders, Rod End For Front Catch, Diagnosis With Previous Knowledge Of Vario Roof - A7/5 Hydraulic Unit (2 Of 2)
