Circuit diagram (folding roof closed) for hydraulic cylinders, vario roof (VR) - AD77.50-P-2000-22A
Circuit diagram (folding roof closed) for hydraulic cylinders, vario roof (VR) - AD77.50-P-2000-22A
Vario roof

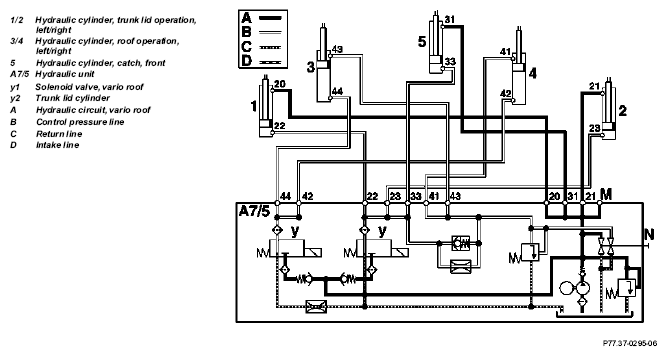

Fig 1: Circuit Diagram (Folding Roof Closed) For Hydraulic Cylinders, Vario Roof
