Checking electrical system, vario roof (VR) - AD77.50-P-6000A
>>
Vario roof "closed" limit switch, checking electrical system, vario roof (VR) - AD77.50-P-6000-10A
Vario roof "closed" limit switch, checking electrical system, vario roof (VR) - AD77.50-P-6000-10A

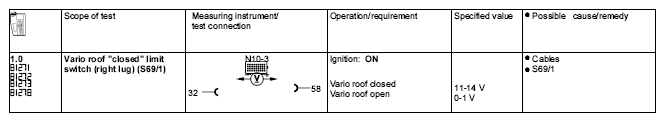

Fig 1: Vario Roof Closed Limit Switch, Checking Electrical System, Vario Roof
