Checking electrical system, vario roof (VR) - AD77.50-P-6000A
>>
Trunk partition "closed" limit switch, checking electrical system, vario roof (VR) - AD77.50-P-6000-14A
Trunk partition "closed" limit switch, checking electrical system, vario roof (VR) - AD77.50-P-6000-14A

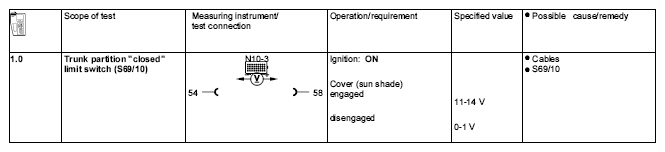

Fig 1: Trunk Partition Closed Limit Switch, Checking Electrical System, Vario Roof
