Checking electrical system, vario roof (VR) - AD77.50-P-6000A
>>
Trunk lid "closed/locked" limit switch, checking electrical system, vario roof (VR) - AD77.50-P-6000-13A
Trunk lid "closed/locked" limit switch, checking electrical system, vario roof (VR) - AD77.50-P-6000-13A

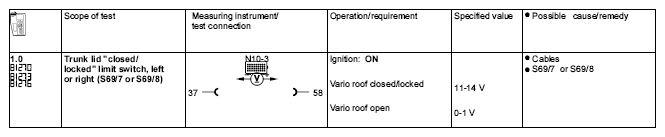

Fig 1: Trunk Lid Closed/Locked Limit Switch, Checking Electrical System, Vario Roof
