Checking electrical system, vario roof (VR) - AD77.50-P-6000A
>>
Speed signal, checking electrical system, vario roof (VR) - AD77.50-P-6000-35A
Speed signal, checking electrical system, vario roof (VR) - AD77.50-P-6000-35A

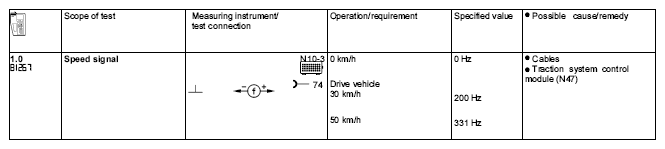

Fig 1: Speed Signal, Checking Electrical System, Vario Roof
