Overload protection thermocouple (A7/5b1), checking electrical system, vario roof (VR) - AD77.50-P-6000-08A
Overload protection thermocouple (A7/5b1), checking electrical system, vario roof (VR) - AD77.50-P-6000-08A

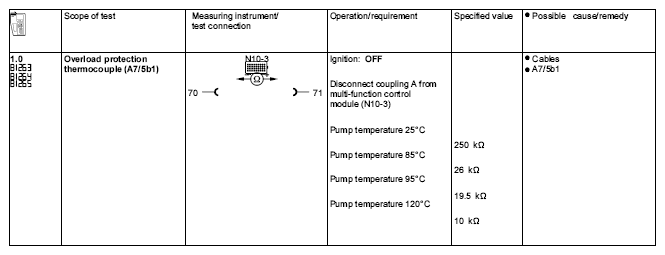

Fig 1: Overload Protection Thermocouple (A7/5B1), Checking Electrical System, Vario Roof
