Checking electrical system, vario roof (VR) - AD77.50-P-6000A
>>
Energizing of trunk lid cylinder, checking electrical system, vario roof (VR) - AD77.50-P-6000-32A
Energizing of trunk lid cylinder, checking electrical system, vario roof (VR) - AD77.50-P-6000-32A

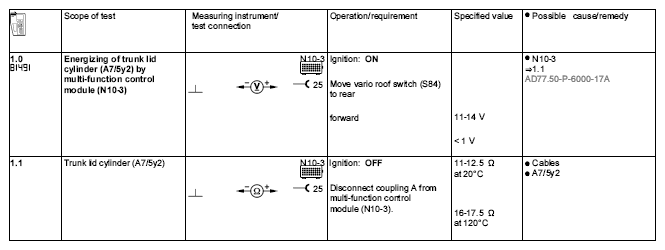

Fig 1: Energizing Of Trunk Lid Cylinder, Checking Electrical System, Vario Roof
