Energizing of pump relay (A7/5k1) by multifunction control module (N10-3), checking electrical system, vario roof (VR) - AD77.50-P-6000-07A

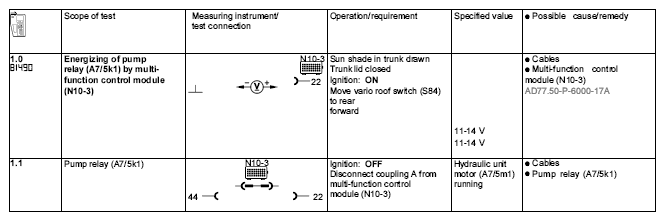

Fig 1: Energizing Of Pump Relay (A7/5K1) By Multifunction Control Module (N10-3), Checking Electrical System, Vario Roof
G04744180
