Vario roof (VR), location of electric components - GF77.30-P-0001-01A

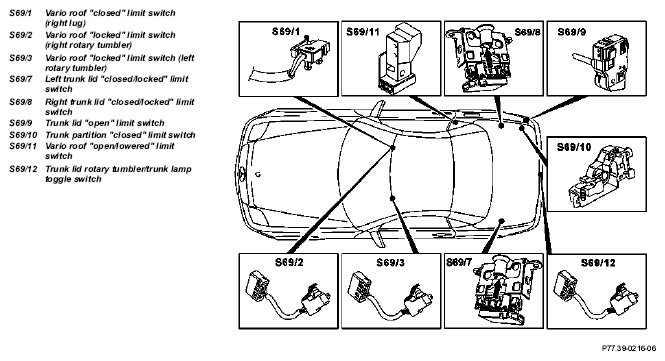

Fig 1: Identifying Vario Roof Electric Components Location (1 Of 2)
G04744091

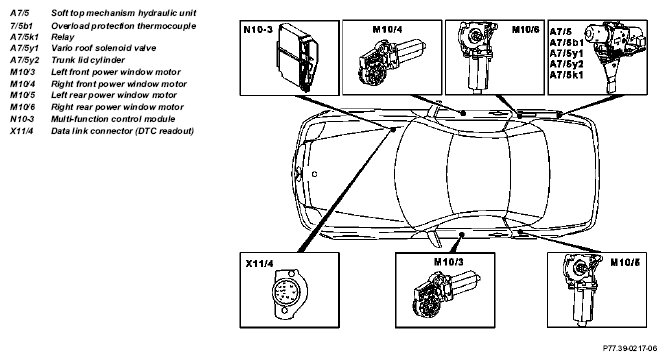

Fig 2: Identifying Vario Roof Electric Components Location (2 Of 2)
G04744092

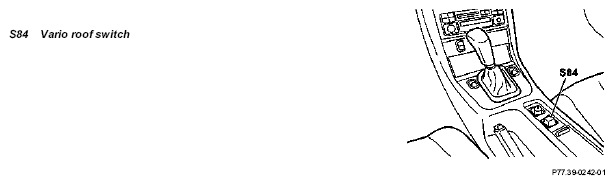

Fig 3: Identifying Vario Roof Switch
G04744093
