Remove/install outside mirror complete - AR88.70-P-9000G
MODEL 168, 170, 208

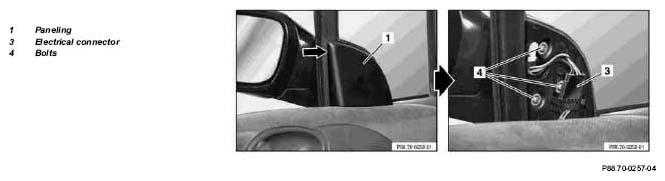

Shown on model 170

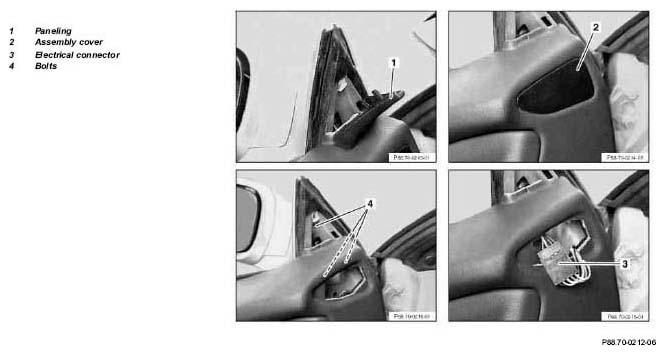

Shown on model 208.3

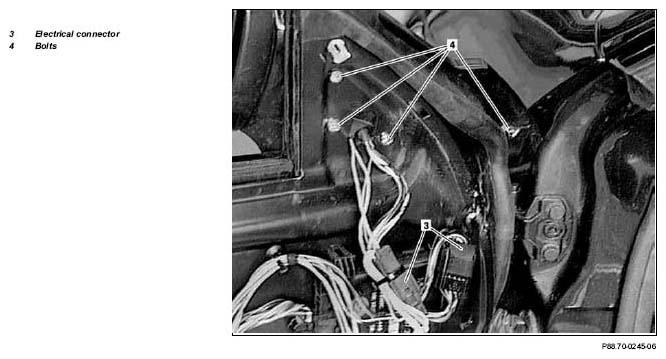

Shown on model 168
| Remove/Install | |||
| 1 | Press paneling (1) off with long wedge | Fig 4 | |
| 2.1 | Remove door lining from front door | Only on model 208.3, if a door liner is installed without assembly cover (2). | AR72.10-P-1000K |
| 2.2 | Press assembly cover (2) off with plastic wedge | Only on model 208.3, if door liner is installed with assembly cover (2) and on model 170. | |
| 3 | Separate electrical connection (3) | ||
| 4 | Unscrew bolts (4) and remove outside mirror | ||
| 5 | Install in the reverse order |
