Retrofitting adapter on towing eye - AZ88.00-P-0001-05A

TOWING EYE

Number	Designation		Model 170 with code 772
BA00.60-P-1001-01A	Screw for adapter on towing eye	NM	67 (± 2)

1. Install adapter (1) to towing eye.
2. Lay towing eye ring (3) into trunk with jack.
3. For towing see operating instructions.

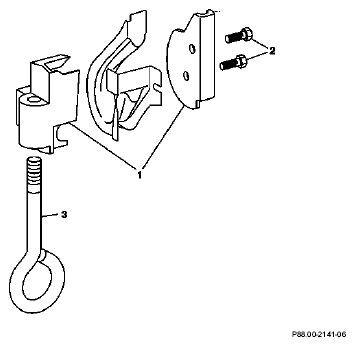

   Fig 1: Identifying Adapter & Towing Eye Ring
