Converting side paneling - AZ88.00-P-0001-04N

Preparation

  1. Remove side paneling.

    2. Assembly

  2. Reinstall AMG side paneling in opposite order.

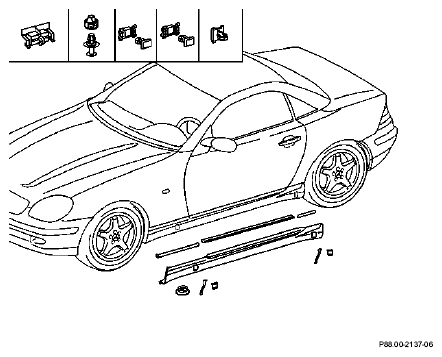

    Fig 1: Identifying AMG Side Paneling Components
    G04744622
