Converting front bumper - AZ88.00-P-0001-02M

Preparation

1. Remove standard bumper.
2. Remove headlight (1).
3. Remove impact damper (2), inner section (3), mounting rails (4).
4. Remove windshield washer system round cover plate (5).
5. Remove moldings (6), license plate cover (7) and grate (8).

Assembly

6. Clip temperature sensor (9) into grate.
7. Reassemble and reinstall bumper in opposite order.

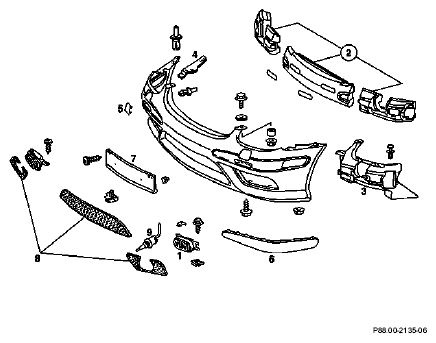

   Fig 1: Identifying Front Bumper Components
