Anti-theft alarm (ATA) test of electrical system - AD80.50-P-6000A
>>
Anti-theft alarm (ATA) test of electrical system left front door contact switch - AD80.50-P-6000-15A
Anti-theft alarm (ATA) test of electrical system left front door contact switch - AD80.50-P-6000-15A

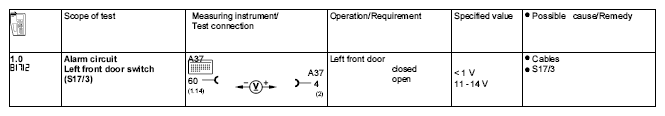

Fig 1: Anti-Theft Alarm (ATA) Test Of Electrical System Left Front Door Contact Switch
