Anti-theft alarm (ATA) test of electrical system alarm signal siren - AD80.50-P-6000-04B

Models 129, 170, 202, 208, 210 as of 6/98

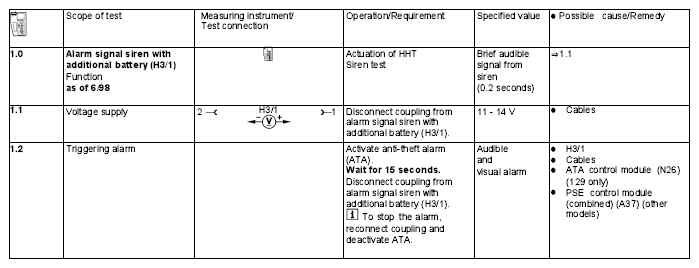

Fig 1: Anti-Theft Alarm (ATA) Test Of Electrical System Alarm Signal Siren - Models 129, 170, 202, 208, 210 As Of 6/98
G04635851
