Central locking (CL), PSE control module, interlinkage of electric components - GF80.20-P-0005-06C

Model 170 USA ONLYJAPAN ONLY

Model 170 as of 06/97

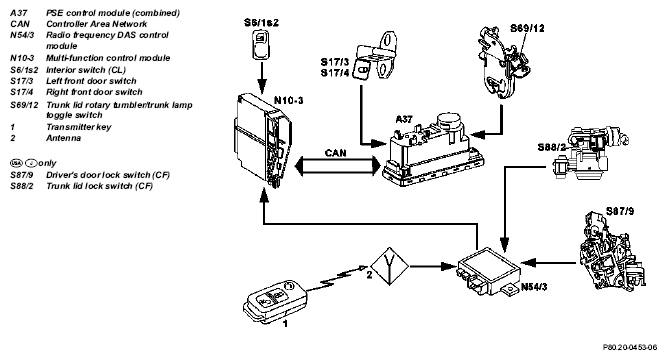

Fig 1: Identifying Central Locking (CL), PSE Control Module, Interlinkage Of Electric Components
G04744302
