Anti-theft alarm (ATA), location of components - GF80.50-P-0001-02J

Model 170, (up to 6/97 USA ONLYonly)

Vehicles up to 5/98

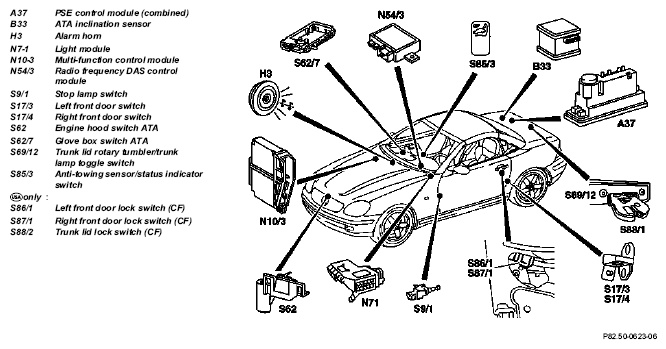

Fig 1: Identifying Anti-Theft Alarm (ATA) Components Location - Vehicles Up To 5/98
G04744318

Vehicles as of 6/98

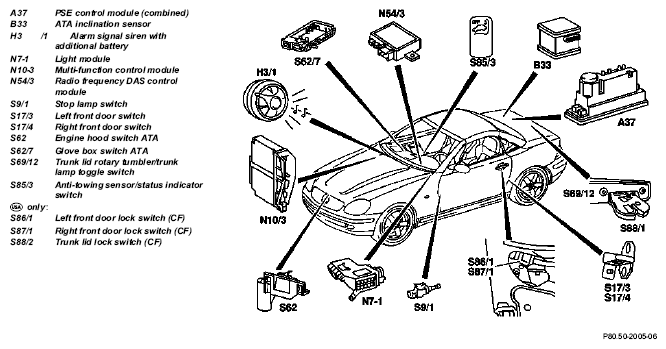

Fig 2: Identifying Anti-Theft Alarm (ATA) Components Location - Vehicles As Of 6/98
G04744319
