Anti-theft alarm, interlinkage of components - GF80.50-P-0001-03B

Model 170 with code 551 (EDW)

Model 170 up to 5/97 except USA ONLY , JAPAN ONLY

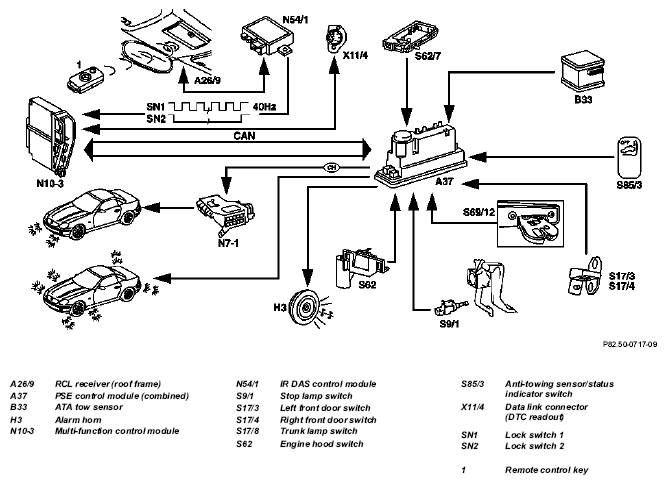

Fig 1: Identifying Anti-Theft Alarm Interlinkage Of Components - Model 170 Up To 5/97
G04744320

Model 170 as of 6/97 only USA ONLY , JAPAN ONLY

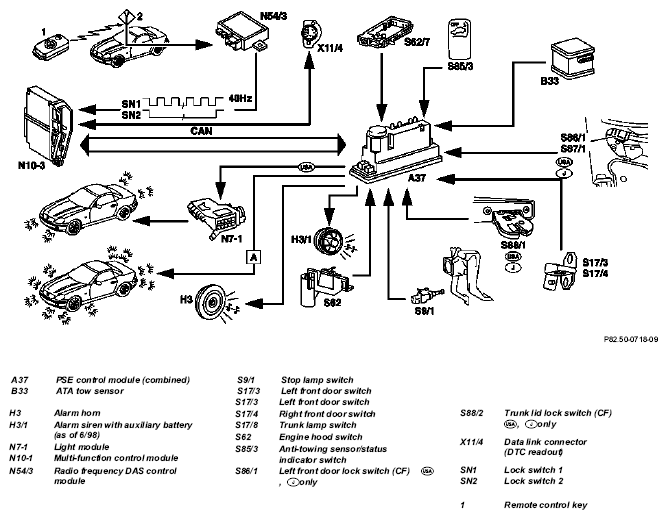

Fig 2: Identifying Anti-Theft Alarm Interlinkage Of Components - Model 170 As Of 6/97
G04744321
