Radio (RD), location of operating elements - GF82.60-P-0001-02T

Models 129, 202,208 as of 08/99 with CODE 753

Model 168 as of 06/99 with CODE 753

Model 170 as of 02/00 with CODE 753

Model 210 as of 07/99 with CODE 753

Models 461, 463 as of 06/98 with CODE EF1

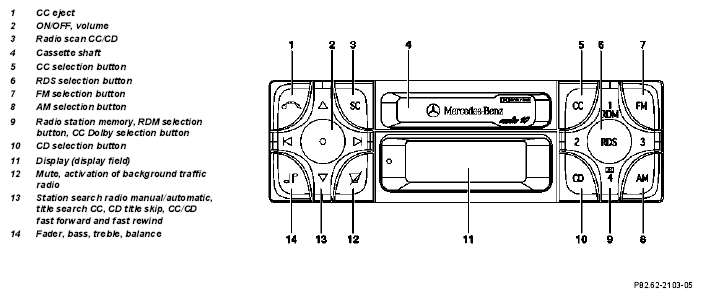

Fig 1: Identifying Radio (RD) Location Of Controls
G04636917
