Fiber optic cable, location - GF82.00-P-4000-01C

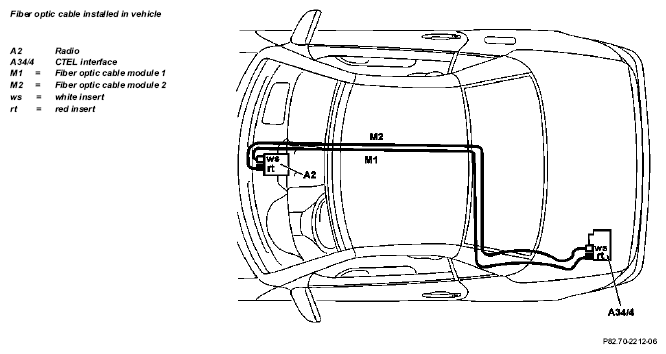

Fig 1: Identifying Fiber Optic Cable, Location

G04745686
