Removing and installing bulbs in headlamp unit - AR82.10-P-1201C

MODEL 170 except CODE (612b) Xenon headlamp

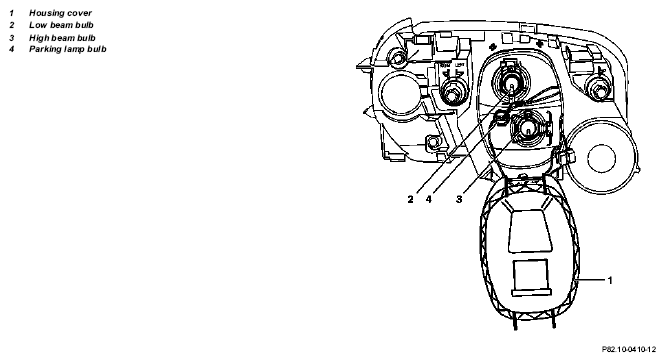

Fig 1: Identifying Headlamp Bulbs Remove/Install Components - Model 170 Except Code (612B) Xenon Headlamp

	Removal, installation
1	Remove housing cover (1)
2	Disconnect electrical connector from bulb to be replaced
3	Open retaining clip for bulb to be replaced
4	Remove bulb	Do not touch glass of bulb with bare fingers, use grease-free, soft rag. Install in correct position.
5	Install in the reverse order
