Repair closing function of ashtray - AR68.20-P-2411G
MODEL 170
| Remove | |||

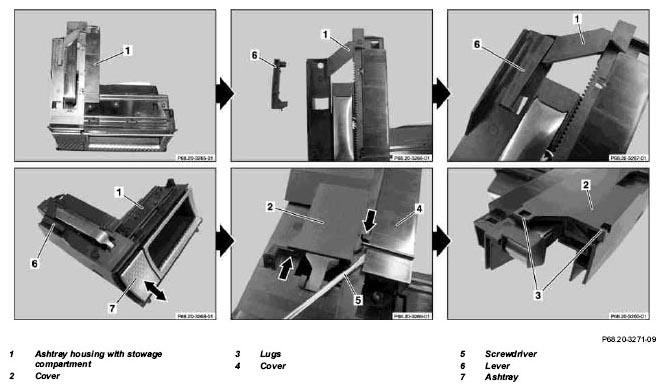

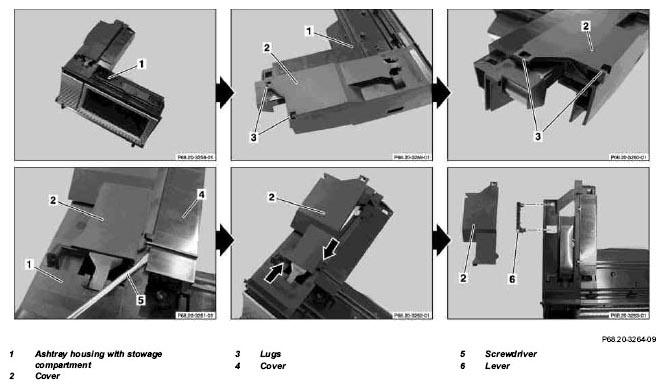

| 1 | Remove ashtray housing with stowage compartment (1) from front of center console | AR68.20-P-2410G | |
| 2 | Loosen cover (2) of ashtray housing with stowage compartment (1) at lugs (3) | ||
| 3 | Unclip cover (4) with screwdriver (5) | ||
| 4 | Draw out cover (2) of ashtray housing with stowage compartment (1) at brackets (see arrow) and remove | ||
| 5 | Unclip defective lever (6) from bracket of ashtray housing with stowage compartment (1) or replace missing lever (6) | ||
| Install | |||
| 6 | Clip new lever (6) into bracket of ashtray housing with stowage compartment (1) | ||
| 7 | Check ashtray (7) for proper operation | ||
| 8 | Lift cover (4) with screwdriver (5) | ||
| 9 | Insert cover (2) of ashtray housing with stowage compartment (1) at brackets (see arrow) | ||
| 10 | Clip in cover (2) of ashtray housing with stowage compartment (1) at lugs (3) | ||
| 11 | Clip on cover (4) | ||
| 12 | Install ashtray housing with stowage compartment (1) at front of center console | AR68.20-P-2410G |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| A 170 684 00 54 | Lever | 1 |
