Retrofitting wiring harness - AN82.61-P-0001-01X

Dynamic guidance Models 210, 170

1. Prepare dynamic guidance wiring harness (1) as shown in figure.

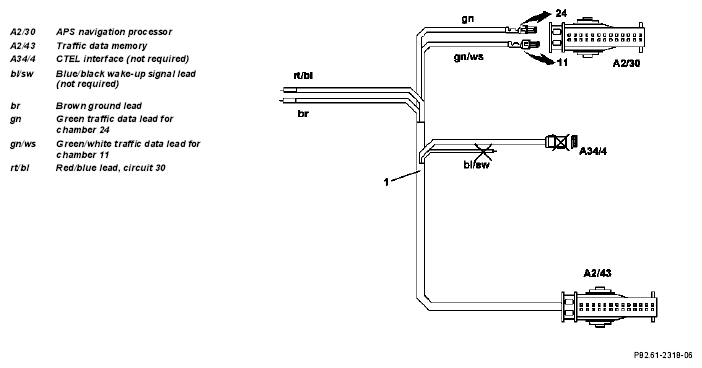

   Fig 1: Wiring Harness Diagram


2. Tie back tie-out to CTEL interface (A34/4) (not required).
3. Tie back blue/black (bl/sw) lead for wake-up signal (not required).
4. Disconnect connector on APS navigation processor (A2/30) open by pulling cover (D) off of housing (G) and pull out contact carrier.
   Fig 2: Identifying Traffic Data Memory


5. Insert the following leads into contact carrier of APS navigation processor (A2/30) connector:
6. Slide contact carrier into APS navigation processor (A2/30) connector and close connector.
   Fig 3: Identifying APS Navigation Processor


7. Cut open auto-pilot system wiring harness on APS navigation processor (A2/30) connector approx. 100 mm.
