Retrofitting diagnostic cable - AN82.61-P-0001-03E
Model 170

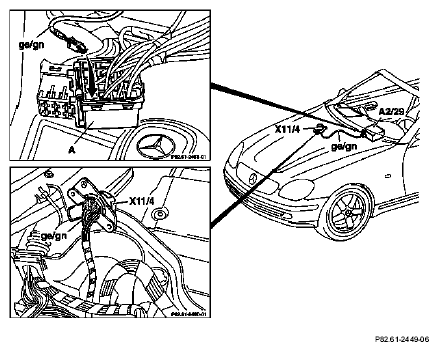

- Route yellow/green (ge/gn) wire from radio shaft to data link connector (X11/4) according to figure and fasten with cable straps.
Route lead below instrument panel on right to passage in control module box and fasten with cable strap. Cut off excessive length at data link connector (X11/4).
- Install contact spring on end of yellow/ green (ge/gn) wire in radio shaft and insert into chamber 2 of connector A for radio and navigation operating unit (A2/29) standard wiring harness.
- Open data link connector (X11/4) and expose chamber 33.
- Install contact socket on end of yellow/green (ge/gn) lead on data link connector (X11/4) and insert into chamber 33 of data link connector (X11/4).
If a lead is already present in chamber 33 connect it to the yellow/ green (ge/gn) lead using a solder connector.
