Corrosion of weld at sealing flange of windshield and rear window - AF67.00-P-2000A

MODEL WDB129, 140, 170, 202, 203, 208, 209, 210, 211, 215, 220, 230

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Division	Op. no.	Operation text	Time	Acc. no.	Code
P	975300	Remove corrosion at windshield and rear window sealing flange (windshield/rear window removed)	002 WU	-	-

Damage code	Cause	Remedy
	Poor adhesion in area of MAG weld.	1 Remove corrosion.
	When the windshield and/or rear window are replaced corrosion may be visible in the area of the MIG weld in individual cases on the window sealing flange.	2 Clean the sealing flange.
	Costs are calculated according to goodwill settlement.	The sealing flange must be free of dust and grease.
		3 Perform new paintwork according to the guidelines of DCAG with repair material and according to repair instructions of the approved paint suppliers. ↓

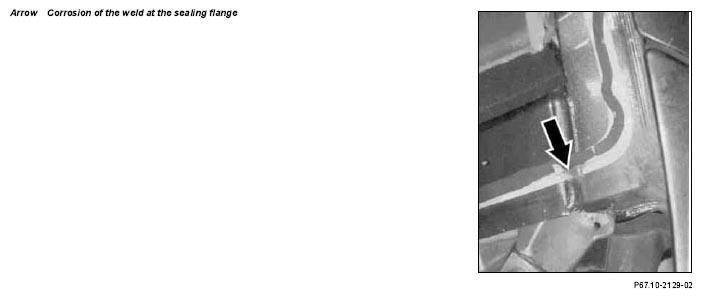

Fig 1: Locating Corrosion Of Weld At Sealing Flange
