Removing and installing sealing rail on outside - AR72.10-P-1700G

MODEL 170

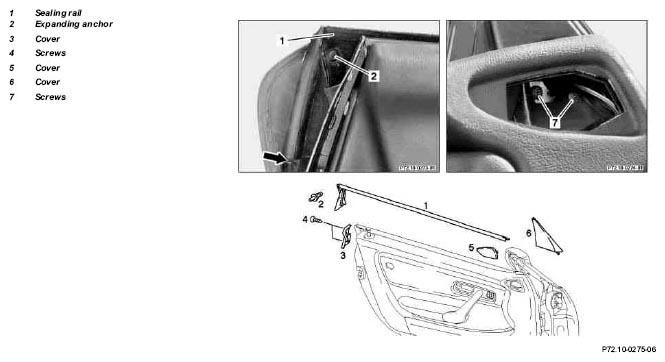

Fig 1: Identifying Sealing Rail On Outside Remove/Install Components

	Removal, installation
1	Open window
2	Remove cover (3)
3	Pull rubber door seal off at separation point (arrow)	If necessary rubber door seal out of door channel
4	Remove cover (5)
5	Unclip cover (6) with long wedge		Figure
6	Loosen screws (7)
7	Remove expanding anchor (2)	Installation  : Replace expanding anchor
8	Press sealing rail (1) off of window shaft uniformly with assembly wedge and remove	Pull sealing rail out below exterior rearview mirror, if necessary raise rearview mirror Installation  : Raise exterior rearview mirror	Figure
9	Reinstall in opposite order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Fig 3: Identifying Installation Wedge (110 589 03 59 00)
