Removing and installing mount for catch on cross member above windshield - AR77.33-P-3450G

MODEL 170

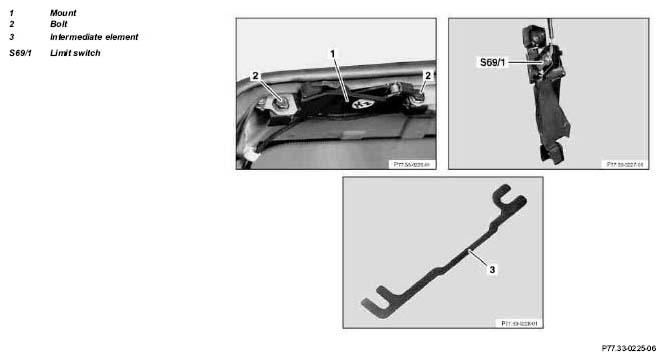

Fig 1: Identifying Mount For Catch On Cross Member Above Windshield Remove/Install Components

	Removal, installation
1	Remove window molding at top of windshield		AR68.30-P-4250G
2	Mark position of bolts (2) and unscrew		*BA77.33-P-1002-01A
3	Remove mount (1) and intermediate element (3)
4	Press limit switch (S69/1) off with screwdriver	Install limit switch (S69/1) on right mount only
5	Reinstall in opposite order	Observe intermediate element (3) when installing, check position of Vario-roof above windshield, if necessary ↓ adjust Vario-roof

Vario-roof mechanism

Number	Designation		Model 170
BA77.33-P-1002-01A	Bolts for mount on cross member above windshield	Nm	10
