Removing and installing seat height adjustment motor - AR91.29-P-1421GG
MODEL 170 with CODE (560) Left and right electrically adjustable front seats
| Removal, installation | |||

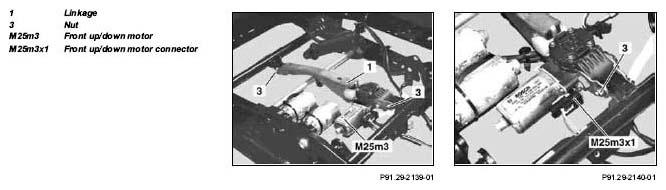

| 1 | Remove driver's seat cushion | AR91.10-P-1070GA | |
| 2 | Disconnect front up/down motor connector (M25m3x1) | ||
| 3 | Unscrew nuts (3) and pull out bolts | ||
| 4 | Remove linkage (1) with motor (M25m3) and gear | ||
| 5 | Install in the reverse order | ||
| 6 | Carry out operational check |
