Removal, installation |
|
|
 |
Injury hazard
when testing or repairing airbags or emergency tensioning retractors. |
Store airbags with opening surface pointing up, do not expose to temperatures above 100 °C. Interrupt electric circuit when working on these units. |
AS91.00-Z-0001-01A |
 |
Important instructions for performing repair, body work and welding on vehicles with airbags and emergency tensioning retractors |
Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904 |
AH91.00-P-0002-01B |
|
Evaluation of airbags and emergency tensioning retractors on accident vehicles |
Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904 |
AH91.00-P-0006-01B |
 |
Legal regulations on handling and storing airbags and emergency tensioning retractors |
Model 124, 129, 140, 163, 168, 170, 202, 208, 210,314, 316, 318, 463, 638, 901, 902, 903, 904, 950, 952, 953, 954 |
AH91.00-P-0004-01A |
 |
Instructions on disposal of airbags and emergency tensioning retractors |
All models |
OS91.00-P-0001-01A |
| 1 |
Disconnect ground lead from battery |
|
|
| 2 |
Remove ignition key |
|
|
| 3 |

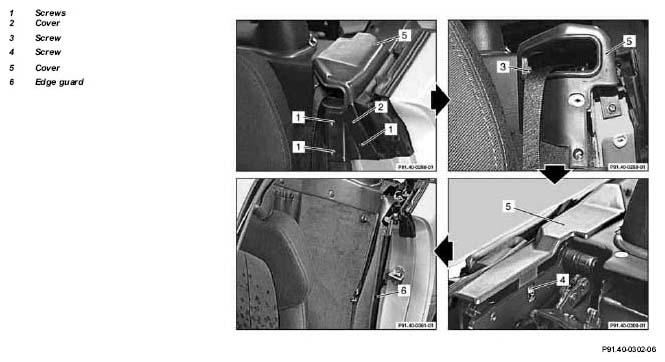

Unscrew screws (1, 3 each) |
|
|
| 4 |
Remove cover (2) |
|
|
| 5 |
Unscrew screw (3) |
|
|
| 6 |
Unscrew screw (4) |
|
|
| 7 |
Remove cover (5) |
|
|
| 8 |
Remove edge guard (6) |
|
|
| 9 |

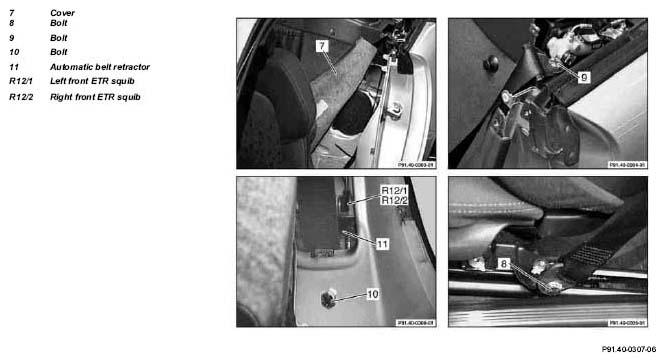

Fold back covering (7) |
|
|
| 10 |
Unscrew bolt (8) on belt end fitting |
 |
*BA91.40-P-1001-01F |
| |
|
 |
Fig 3 |
| 11 |
Unscrew bolt (9) on upper belt guide fitting |
|
*BA91.40-P-1003-01F |
| |
|
|
Fig 3 |
| 12 |
Disconnect connector on ETR squib (R12/1, R12/2) |
|
|
| 13 |
Unscrew bolt (10) on belt reel |
|
*BA91.40-P-1004-01F |
| |
|
|
Fig 3 |
|
Injury hazard
resulting from releasing the spring in the seat belt reel |
Never disassemble seat belt reels. |
AS91.00-Z-0002-01A |
| 14 |
Remove belt reel (3) |
Never attempt to eliminate noises by lubricating with oil or grease.
Opening belt reels invalidates the warranty!
Installation:
Pay attention to different versions of emergency tensioning retractors (for left and right sides) and ensure that retractor is properly seated in arresting device. |
|
| 15 |
Rendering emergency tensioning retractors unusable |
|
AR91.40-P-0611A |
| 16 |
Perform diagnosis |
See Diagnosis Manual, Body |
|
| 17 |
Install in opposite order |
|
|
