Removing and installing housing on handle for seat height adjustment - AR91.10-P-1510G

MODEL 170

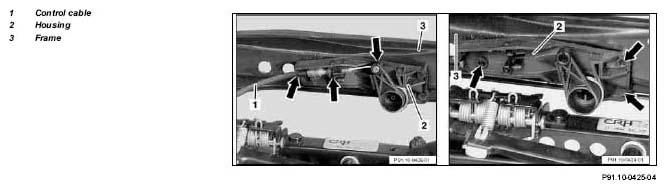

Fig 1: Identifying Housing On Handle For Seat Height Adjustment Remove/Install Components

	Removal, installation
1	Remove driver's seat cushion		AR91.10-P-1070G
2	Unclip control cable (1) on housing (2) and unhook	When installing check adjustment of control cable (1), adjust, if necessary	AR91.10-P-1500G
3	Press out anchors (arrows, 3 each)
4	Remove housing (2) from frame (3)
5	Reinstall in opposite order
