Removing and installing front passenger airbag - AR91.60-P-0680G

MODEL 170

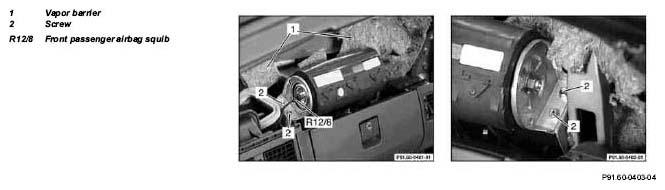

Fig 1: Identifying Front Passenger Airbag Remove/Install Components

	Removal, installation
	Injury hazard  when testing or repairing airbags or emergency tensioning retractors.	Store airbags with opening surface pointing up, do not expose to temperatures above 100 °C. Interrupt electric circuit when working on these units.	AS91.00-Z-0001-01A
	Important instructions for performing repair, body work and welding on vehicles with airbags and emergency tensioning retractors	Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904	AH91.00-P-0002-01B
	Legal regulations on handling and storing airbags and emergency tensioning retractors	Models 124, 129, 140, 163, 168, 170, 202, 208, 210,314, 316, 318, 463, 638, 901, 902, 903, 904, 950, 952, 953, 954	AH91.00-P-0004-01A
	Instructions on disposal of airbags and emergency tensioning retractors	All models	OS91.00-P-0001-01A
1	Disconnect ground lead from battery
2	Remove upper section of instrument panel		AR68.10-P-1020G
3	Fold over vapor seal (1) in area of screws (2) toward front
4	Disconnect connector from squib (R12/8) on gas generator	Installation:  Connector should catch audibly
5	Unscrew screws (2) for passenger airbag
6	Remove passenger airbag
	Rendering airbags unusable		AR91.60-P-0611A
7	Install in opposite order	After the passenger airbag has triggered it is necessary to install a new upper section of the instrument panel
8	Perform diagnosis	See Diagnosis Manual, Body
