Removing and installing control module and switches for left and right front heated seats - AR91.30-P-0001G
MODEL 170 with CODE (873) Left and right front heated seats

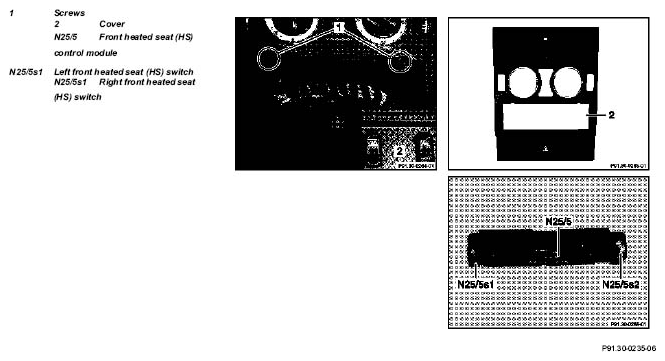

Fig 1: Identifying Control Module And Switches For Left And Right Front Heated Seats Remove/Install Components
| Removal, installation | |||
| 1 | Remove radio | AR82.60-P-7502EA | |
| 2 | Unscrew screws (1) | ||
| 3 | Remove cover (2) | ||
| 4 | Disconnect electrical connectors | ||
| 5 | Unhook control module (N25/5) together with switches (N25/5s1, N25/5s2) from remaining switch unit | ||
| 7 | Reinstall in opposite order |
