Removing and installing control cable for seat height adjustment - AR91.10-P-1500G

MODEL 170

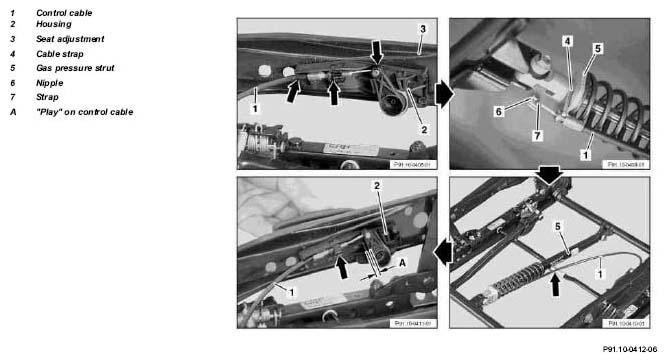

Fig 1: Identifying Control Cable For Seat Height Adjustment Remove/Install Components

	Removal, installation
1	Remove front seat cushion		AR91.10-P-1070G
2	Unhook control cable (1) from housing (2) (arrows)
3	Open cable strap (4) and unhook control cable (1) from gas pressure strut (5)
4	Unhook nipple (6) on strap (7)
5	Remove control cable (1)	When installing route control cable (1) over cross tube for longitudinal adjustment lever (arrow). Adjust control cable (1) with knurled knob (arrow) (play A: 0-1 mm)
6	Reinstall in opposite order
