Removing and installing airbag on steering wheel - AR91.60-P-0660G

MODEL 170, 208

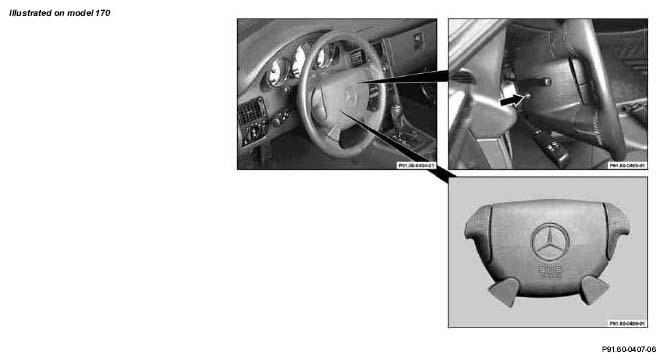

Fig 1: Identifying Airbag On Steering Wheel Remove/Install Components

	Removal, installation
	Injury hazard  when testing or repairing airbags or emergency tensioning retractors	Store airbags with opening surface pointing up, do not expose to temperatures above 100°C. Interrupt electric circuit when working on these units	AS91.00-Z-0001-01A
	Important instructions for performing repair, body work and welding on vehicles with airbags and emergency tensioning retractors	Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904	AH91.00-P-0002-01B
	Evaluation of airbags and emergency tensioning retractors on accident vehicles	Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904	AH91.00-P-0006-01B
	Legal regulations on handling and storing airbags and emergency tensioning retractors	Models 124, 129, 140, 163, 168, 170, 202, 208, 210,314, 316, 318, 463, 638, 901, 902, 903, 904, 950, 952, 953, 954	AH91.00-P-0004-01A
	Instructions on disposal of airbags and emergency tensioning retractors	All models	OS91.00-P-0001-01A
1	Disconnect ground lead from battery
2	Unscrew two screws (arrow)		*BA91.60-P-1001-01A
		Hold airbag while unscrewing
			Fig 2
3	Remove airbag from steering wheel and disconnect connector from squib on gas generator
4	Disconnect horn contacts
	Rendering airbags unusable		AR91.60-P-0611A
5	Install in opposite order	After the driver's airbag has triggered it is always necessary to replace the steering wheel
6	Check combination switch automatic return
7	Perform diagnosis		AD91.60-P-6000A

AIRBAG

Number	Designation		Model 170	Model 208
BA91.60-P-1001-01A	Screw for airbag on steering wheel	Nm	8	8

Fig 2: Identifying Screwdriver Attachment (126 589 00 10 00)
